Individual hose record

4313253 Hose Repair Specifications

Excavator · Hitachi · ZX240LC-3 · Attachments

Finished length1,250 mm

Locate this hose

Installation diagram — Pipe No. 0

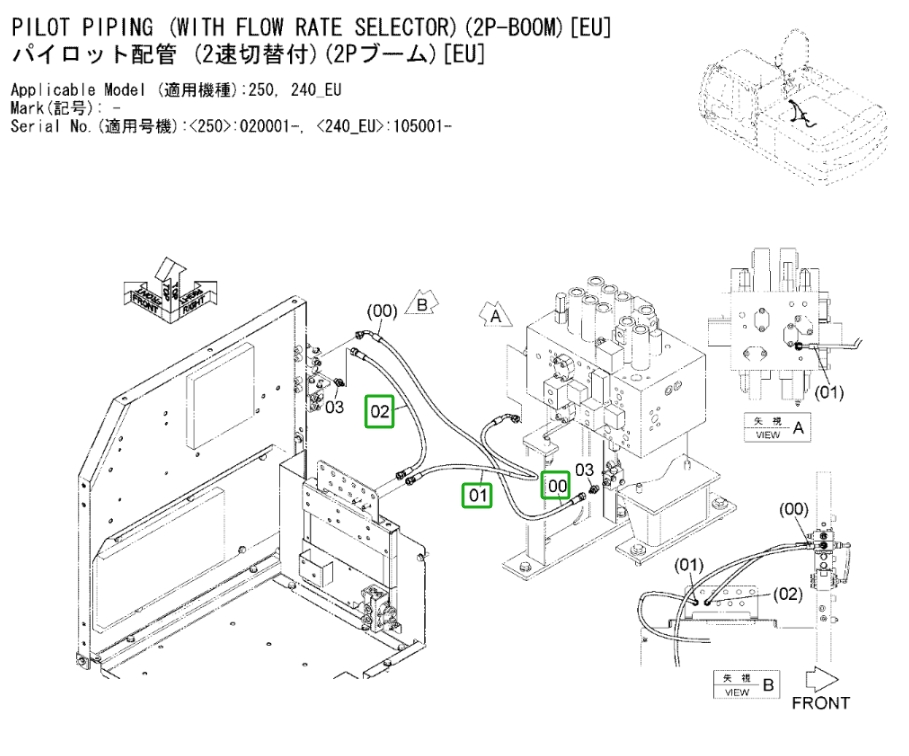

Locate Pipe No. 0 in the diagram, then confirm part number 4313253 before removing the hose.

Hitachi ZX240LC-3 installation diagram showing hydraulic hose 4313253 at Pipe No. 0 — **Hitachi ZX240LC-3**Part 4313253 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4313253
Diagram pipe number: 0
Installation route: 过渡阀块(隔板)~过渡阀块(分配阀)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,250 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 49

9263866

Installation route: 控制阀(辅助)~回油铁管(液压油箱)

Length: 2,150 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4683010

Installation route: 液压油箱~电磁阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12

4635267

Installation route: 电磁阀~液压压力阀

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4285799

Installation route: 先导泵~控制阀(辅助)

Length: 750 mm
Specification: DN12;4SP-08;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 57

4678902

Installation route: 中转接头~接线板(隔板)

Length: 1,600 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4696560

Installation route: 中转接头~电磁阀

Length: 1,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 17

4644618

Installation route: 先导泵~吸油铁管

Length: 480 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 61

4678903

Installation route: 中转接头~接线板(隔板)

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
