Individual hose record
4315339 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Swivel Joint
Finished length1,050 mm
Locate this hose

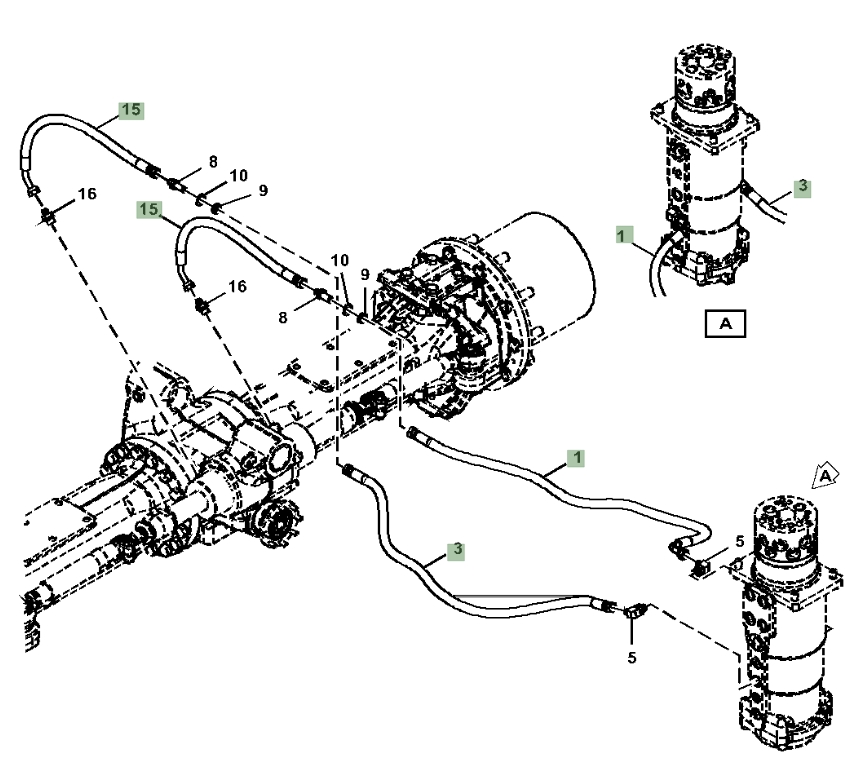

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4315339 before removing the hose.
Repair specifications
- Part number
- 4315339
- Diagram pipe number
- 1
- Installation route
- 回转接头~转向油缸
- Hose specification
- DN10;4SH-06;44.5MPa
- Finished length
- 1,050 mm
- Working pressure
- 44.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
