Individual hose record

9180614 Hose Repair Specifications

Excavator · Hitachi · EX100M-5 · Attachments

Finished length2,650 mm

Locate this hose

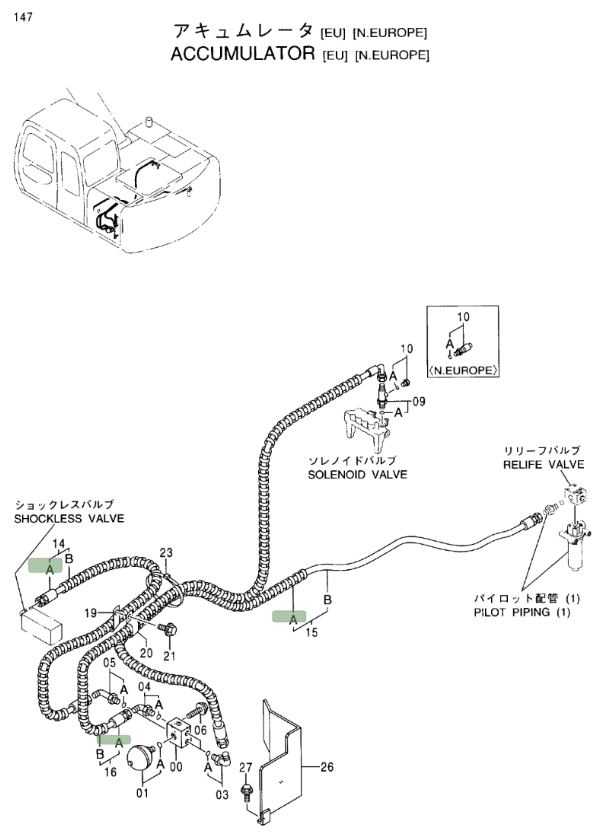

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 9180614 before removing the hose.

Hitachi EX100M-5 installation diagram showing hydraulic hose 9180614 at Pipe No. 15 — **Hitachi EX100M-5**Part 9180614 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 9180614
Diagram pipe number: 15
Installation route: 蓄能器~先导滤芯
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

4365785

Installation route: 推土铲手柄~行走推杆

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12A

4378641

Installation route: 分配阀上右~过渡阀块(分配阀)

Length: 1,000 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 20

4361509

Installation route: 回转接头~铁管(推土铲)

Length: 370 mm
Specification: DN12;4SP-8;41.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7A

4366088

Installation route: 推土铲油缸~铁管(推土铲)

Length: 910 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4375673

Installation route: 过渡阀块(推土铲)~过渡阀块(控制阀(推土铲))

Length: 480 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 14

4366794

Installation route: 先导泵~卸压阀(推土铲)

Length: 380 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

4365779

Installation route: 先导泵上~先导泵前

Length: 580 mm
Specification: DN19;4层纤维-12;3.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

4368703

Installation route: 偏置大臂踏板~进回油阀

Length: 1,180 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
