Individual hose record

KHJ2249 Hose Repair Specifications

Excavator · Case · CX230B · Control Valve

Finished length950 mm

Locate this hose

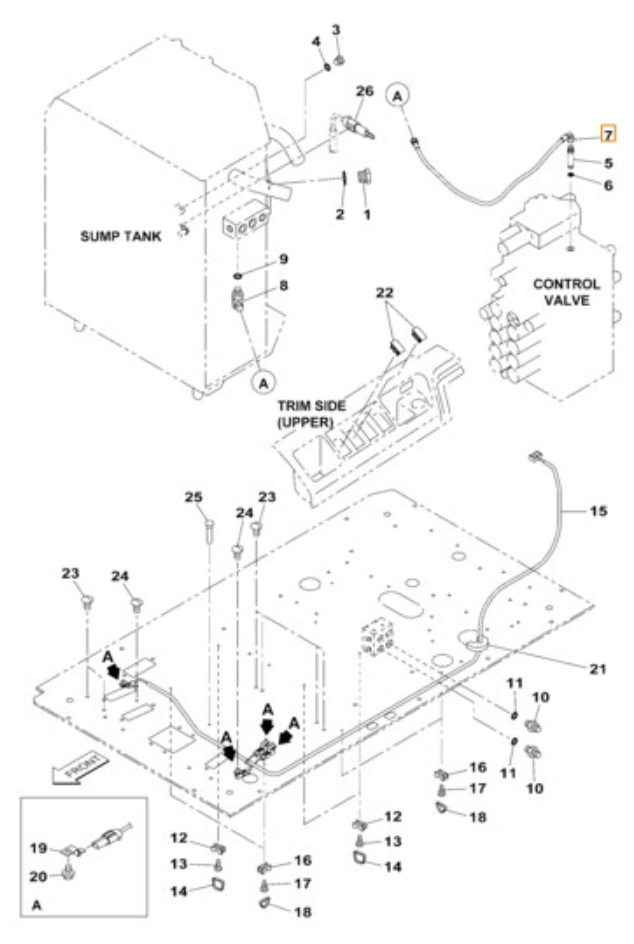

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number KHJ2249 before removing the hose.

Case CX230B installation diagram showing hydraulic hose KHJ2249 at Pipe No. 7 — **Case CX230B**Part KHJ2249 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: KHJ2249
Diagram pipe number: 7
Installation route: 分配阀上~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
