Individual hose record
4446587 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Hydraulic Pump
Finished length650 mm
Locate this hose

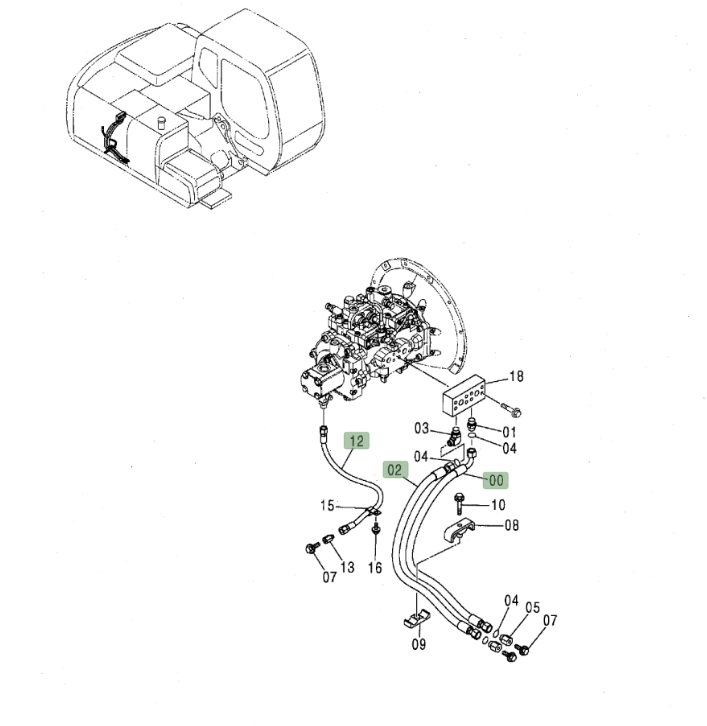

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4446587 before removing the hose.
Repair specifications
- Part number
- 4446587
- Diagram pipe number
- 12
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 650 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
