Individual hose record

DS2094004 Hose Repair Specifications

Excavator · Doosan · DX140W · Attachments – Breaker

Finished length350 mm

Locate this hose

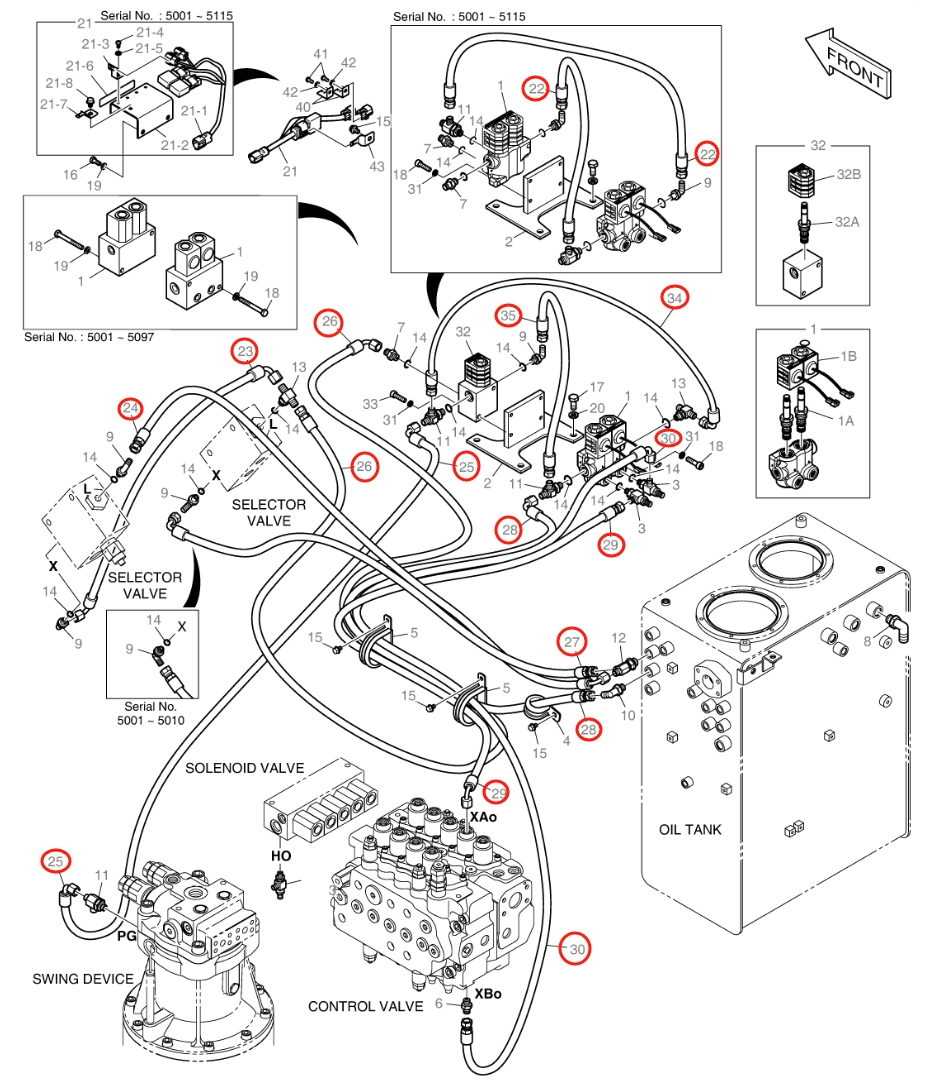

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number DS2094004 before removing the hose.

Doosan DX140W installation diagram showing hydraulic hose DS2094004 at Pipe No. 22 — **Doosan DX140W**Part DS2094004 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: DS2094004
Diagram pipe number: 22
Installation route: 电磁阀(破碎器)~电磁阀(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2
