Individual hose record
4362376 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Swivel Joint
Finished length970 mm
Locate this hose

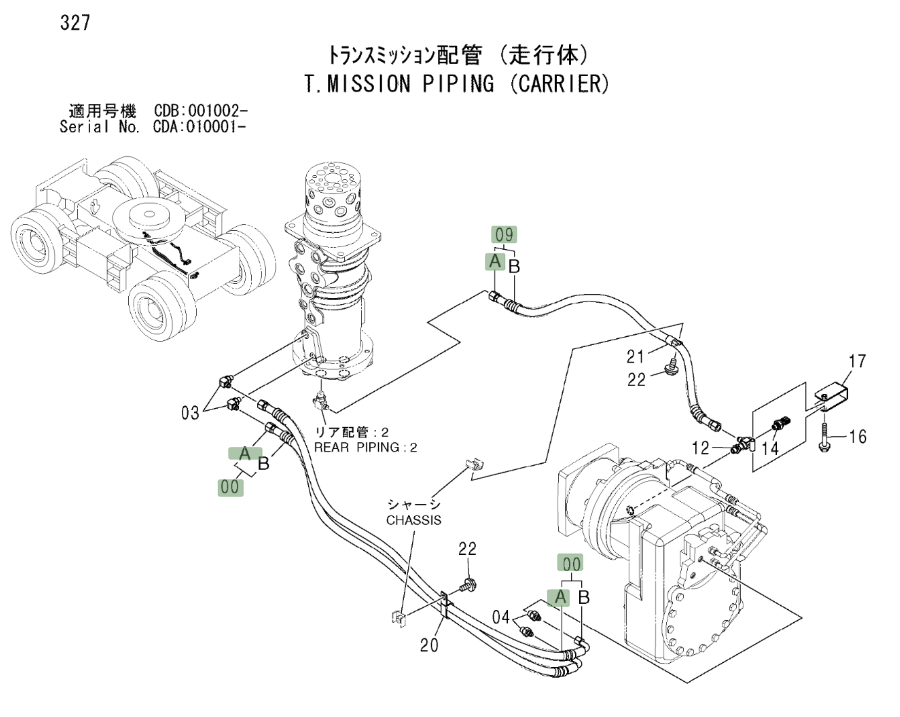

Installation diagram — Pipe No. 9A
Locate Pipe No. 9A in the diagram, then confirm part number 4362376 before removing the hose.
Repair specifications
- Part number
- 4362376
- Diagram pipe number
- 9A
- Installation route
- 回转接头~变速箱
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 970 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
