Individual hose record
9212063 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Swivel Joint
Finished length1,300 mm
Locate this hose

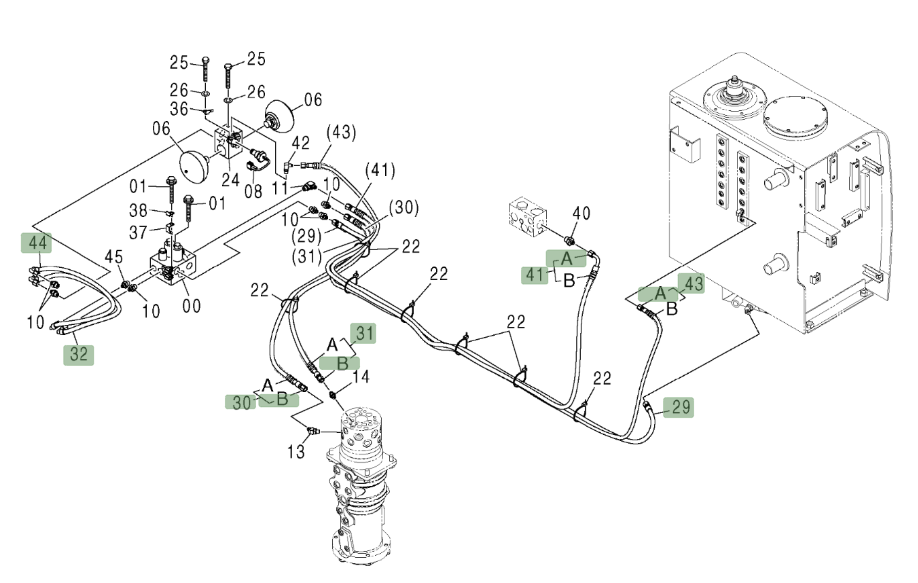

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 9212063 before removing the hose.
Repair specifications
- Part number
- 9212063
- Diagram pipe number
- 30
- Installation route
- 回转接头~电磁阀(变速箱)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
