Individual hose record
9225799 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Swivel Joint
Finished length450 mm
Locate this hose

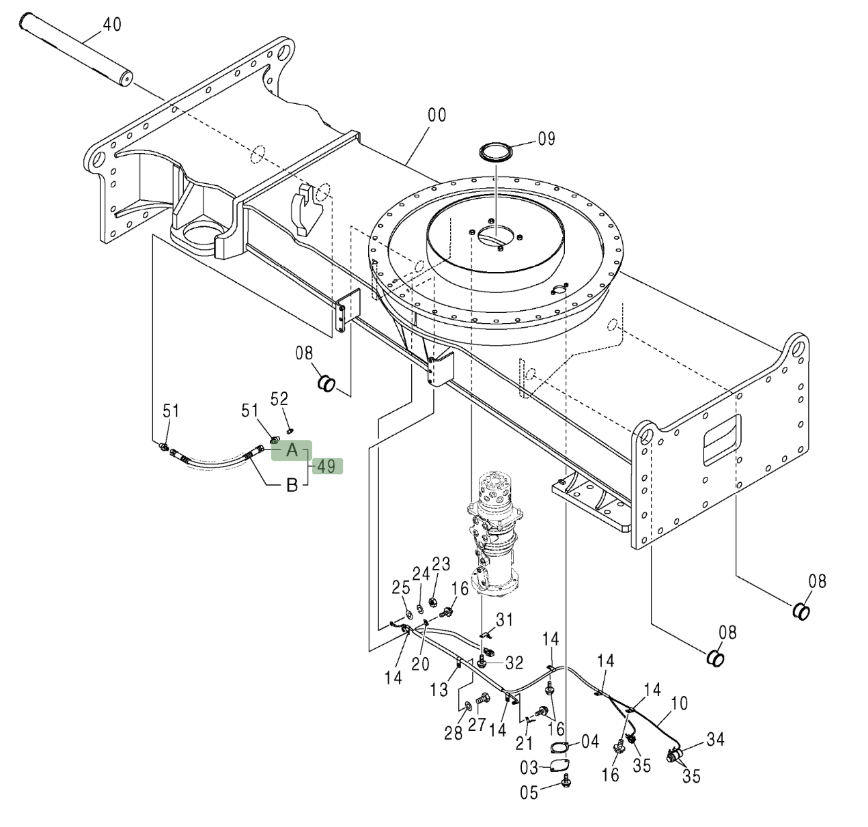

Installation diagram — Pipe No. 49
Locate Pipe No. 49 in the diagram, then confirm part number 9225799 before removing the hose.
Repair specifications
- Part number
- 9225799
- Diagram pipe number
- 49
- Installation route
- 回转接头~底盘支撑轴
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 450 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
