Individual hose record
9224946 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Swivel Joint
Finished length900 mm
Locate this hose

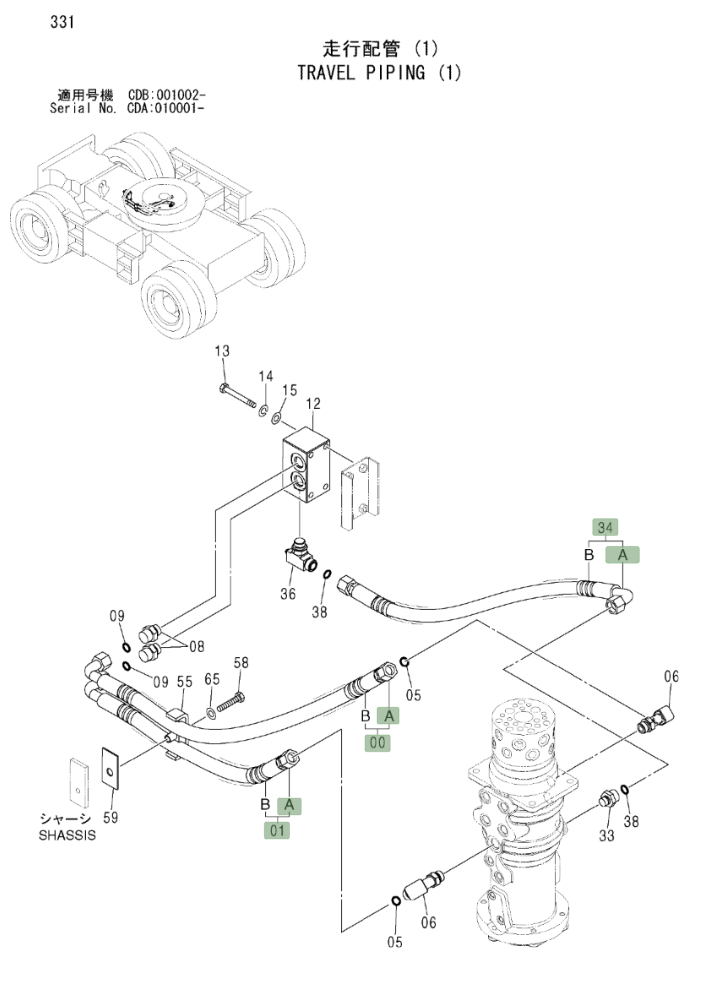

Installation diagram — Pipe No. 34
Locate Pipe No. 34 in the diagram, then confirm part number 9224946 before removing the hose.
Repair specifications
- Part number
- 9224946
- Diagram pipe number
- 34
- Installation route
- 回转接头~过渡阀块(底盘)
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 900 mm
- Working pressure
- 21.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
