Individual hose record

9206419 Hose Repair Specifications

Excavator · Hitachi · ZX800 · Attachments – Breaker

Finished length3,050 mm

Locate this hose

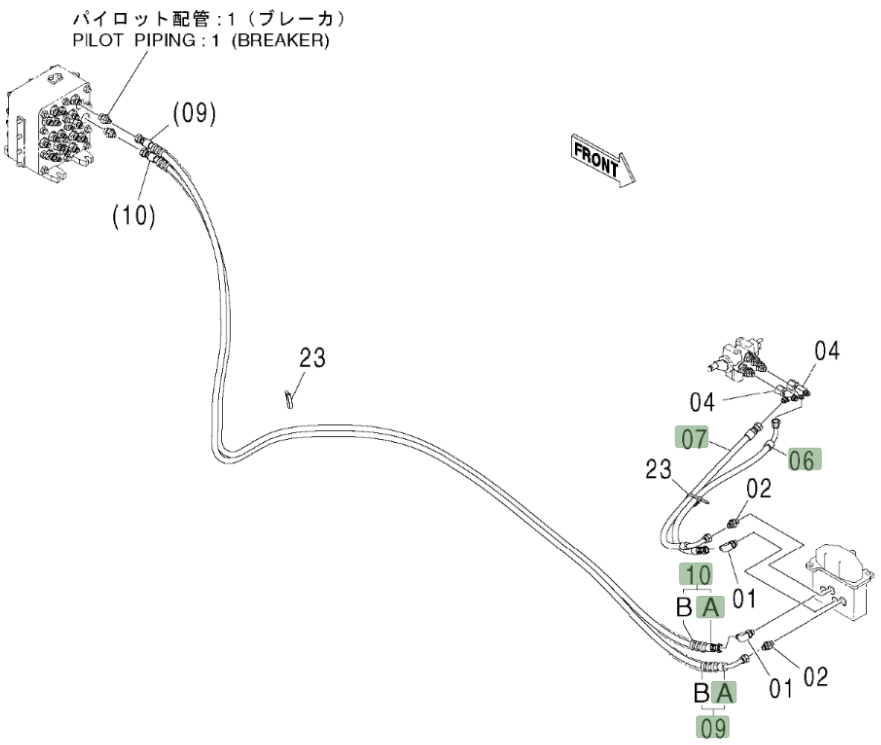

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 9206419 before removing the hose.

Hitachi ZX800 installation diagram showing hydraulic hose 9206419 at Pipe No. 10 — Hitachi ZX800Part 9206419 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 9206419
Diagram pipe number: 10
Installation route: 破碎器踏板~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,050 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
