Individual hose record

4449711 Hose Repair Specifications

Excavator · Hitachi · ZX800 · Attachments – Breaker

Finished length2,800 mm

Locate this hose

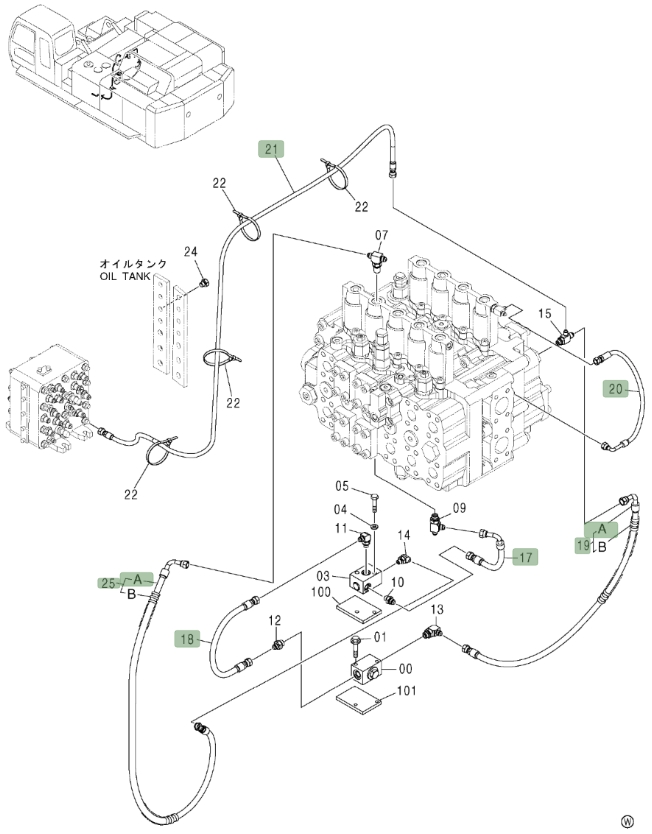

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 4449711 before removing the hose.

Hitachi ZX800 installation diagram showing hydraulic hose 4449711 at Pipe No. 21 — Hitachi ZX800Part 4449711 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 4449711
Diagram pipe number: 21
Installation route: 中转接头~分配阀右
Hose specification: DN6;1SN-4;7Mpa
Finished length: 2,800 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

9206419

Installation route: 破碎器踏板~中转接头

Length: 3,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4379172

Installation route: 破碎器踏板~进回油阀

Length: 500 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10A

4462256

Installation route: 破碎器踏板~中转接头

Length: 3,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4436267

Installation route: 过渡阀块(破碎器)~过渡阀块(破碎器)

Length: 420 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

4331508

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
