Individual hose record

4379172 Hose Repair Specifications

Excavator · Hitachi · ZX800 · Attachments – Breaker

Finished length500 mm

Locate this hose

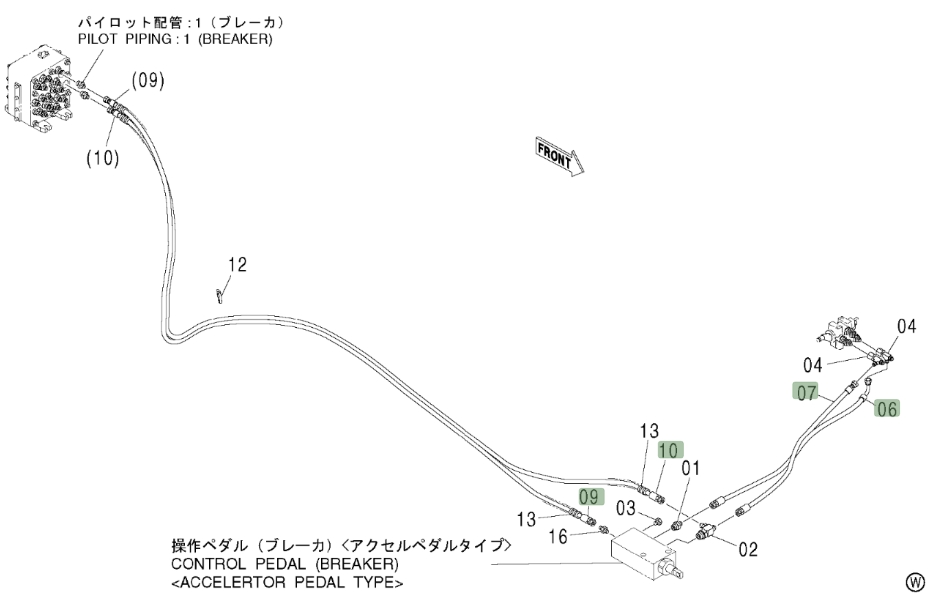

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4379172 before removing the hose.

Hitachi ZX800 installation diagram showing hydraulic hose 4379172 at Pipe No. 7 — Hitachi ZX800Part 4379172 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4379172
Diagram pipe number: 7
Installation route: 破碎器踏板~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

9206419

Installation route: 破碎器踏板~中转接头

Length: 3,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10A

4462256

Installation route: 破碎器踏板~中转接头

Length: 3,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 21

4449711

Installation route: 中转接头~分配阀右

Length: 2,800 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4436267

Installation route: 过渡阀块(破碎器)~过渡阀块(破碎器)

Length: 420 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

4331508

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
