Individual hose record

4366773 Hose Repair Specifications

Excavator · Hitachi · EX450LC-5 · Hydraulic Tank

Finished length2,150 mm

Locate this hose

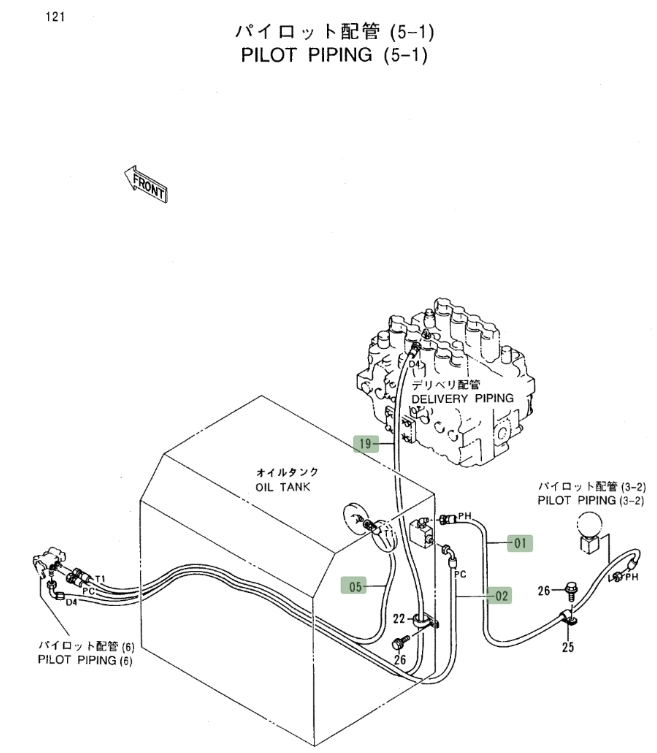

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4366773 before removing the hose.

Hitachi EX450LC-5 installation diagram showing hydraulic hose 4366773 at Pipe No. 5 — Hitachi EX450LC-5Part 4366773 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4366773
Diagram pipe number: 5
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,150 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 36A

4365395

Installation route: 液压油箱~先导滤芯

Length: 1,250 mm
Specification: DN25;4层纤维-16;3.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 78

4366756

Installation route: 液压油箱~电磁阀

Length: 465 mm
Specification: DN10;2SN-6;33MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications
