Individual hose record
4365395 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Hydraulic Tank
Finished length1,250 mm
Locate this hose

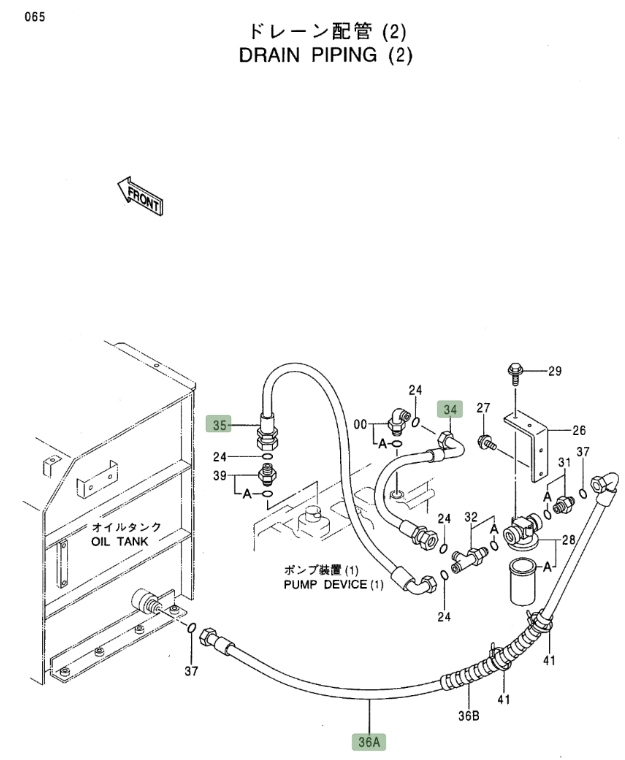

Installation diagram — Pipe No. 36A
Locate Pipe No. 36A in the diagram, then confirm part number 4365395 before removing the hose.
Repair specifications
- Part number
- 4365395
- Diagram pipe number
- 36A
- Installation route
- 液压油箱~先导滤芯
- Hose specification
- DN25;4层纤维-16;3.5MPa
- Finished length
- 1,250 mm
- Working pressure
- 3.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
