Individual hose record

4366756 Hose Repair Specifications

Excavator · Hitachi · EX450LC-5 · Hydraulic Tank

Finished length465 mm

Locate this hose

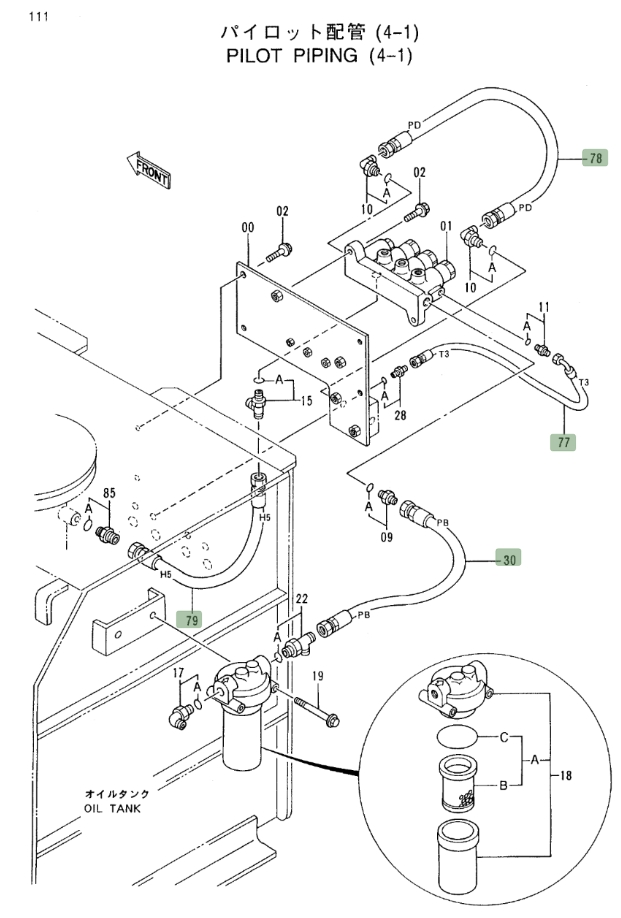

Installation diagram — Pipe No. 78

Locate Pipe No. 78 in the diagram, then confirm part number 4366756 before removing the hose.

Hitachi EX450LC-5 installation diagram showing hydraulic hose 4366756 at Pipe No. 78 — Hitachi EX450LC-5Part 4366756 · Pipe No. 78Open full-size diagram

Repair specifications

Part number: 4366756
Diagram pipe number: 78
Installation route: 液压油箱~电磁阀
Hose specification: DN10;2SN-6;33MPa
Finished length: 465 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角
Quantity: 1
