Individual hose record
4364435 Hose Repair Specifications
Excavator · Hitachi · EX700 · Control Valve
Finished length600 mm
Locate this hose

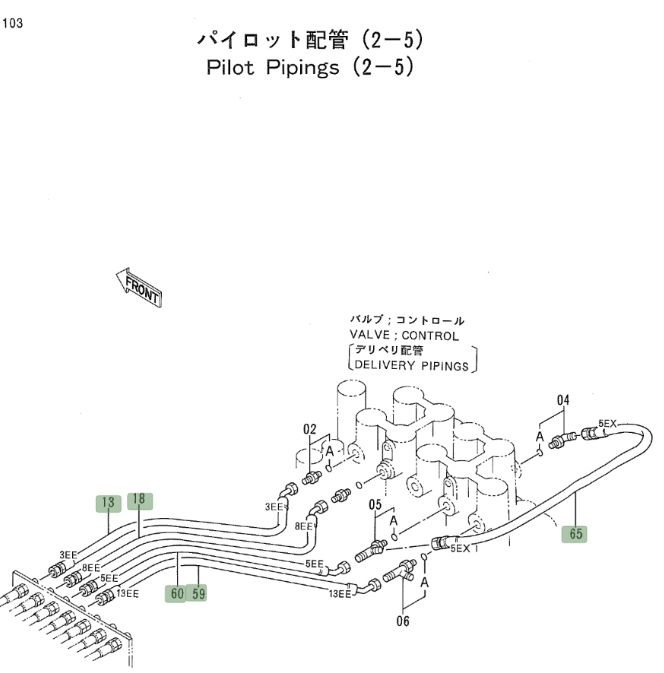

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4364435 before removing the hose.
Repair specifications
- Part number
- 4364435
- Diagram pipe number
- 18
- Installation route
- 分配阀上左~接线板(中转接头)
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 600 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 45°美制内螺纹74°内锥
- Quantity
- 1
