Individual hose record
4247391 Hose Repair Specifications
Excavator · Hitachi · EX700 · Control Valve
Finished length1,150 mm
Locate this hose

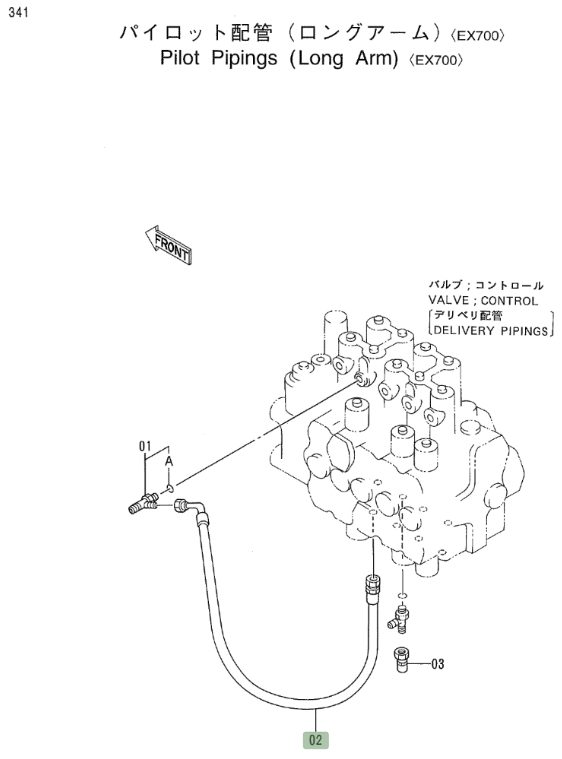

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4247391 before removing the hose.
Repair specifications
- Part number
- 4247391
- Diagram pipe number
- 2
- Installation route
- 分配阀下~
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,150 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
