Individual hose record
4258693 Hose Repair Specifications
Excavator · Hitachi · EX700 · Control Valve
Finished length470 mm
Locate this hose

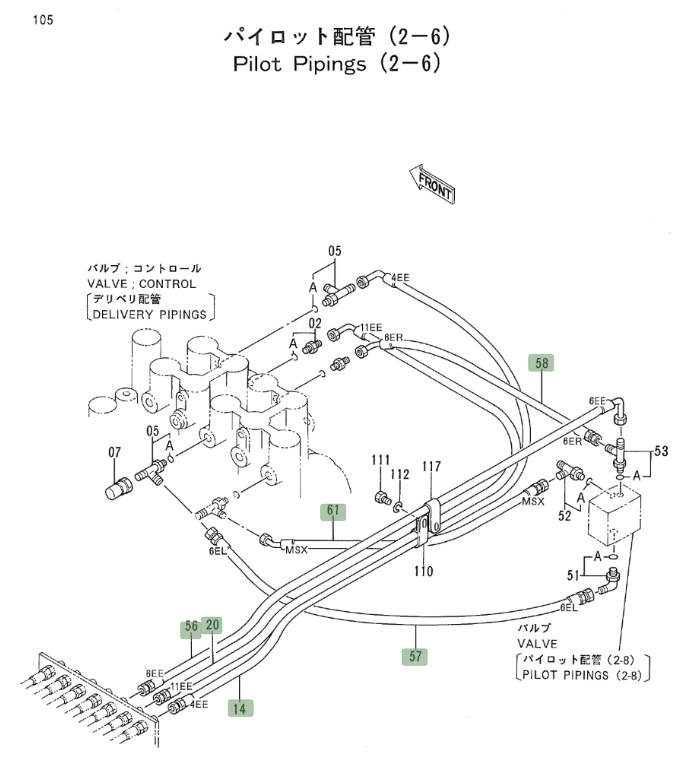

Installation diagram — Pipe No. 61
Locate Pipe No. 61 in the diagram, then confirm part number 4258693 before removing the hose.
Repair specifications
- Part number
- 4258693
- Diagram pipe number
- 61
- Installation route
- 分配阀上左~过渡阀块(隔板)
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 470 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
