Individual hose record
4364398 Hose Repair Specifications
Excavator · Hitachi · EX700 · Control Valve
Finished length850 mm
Locate this hose

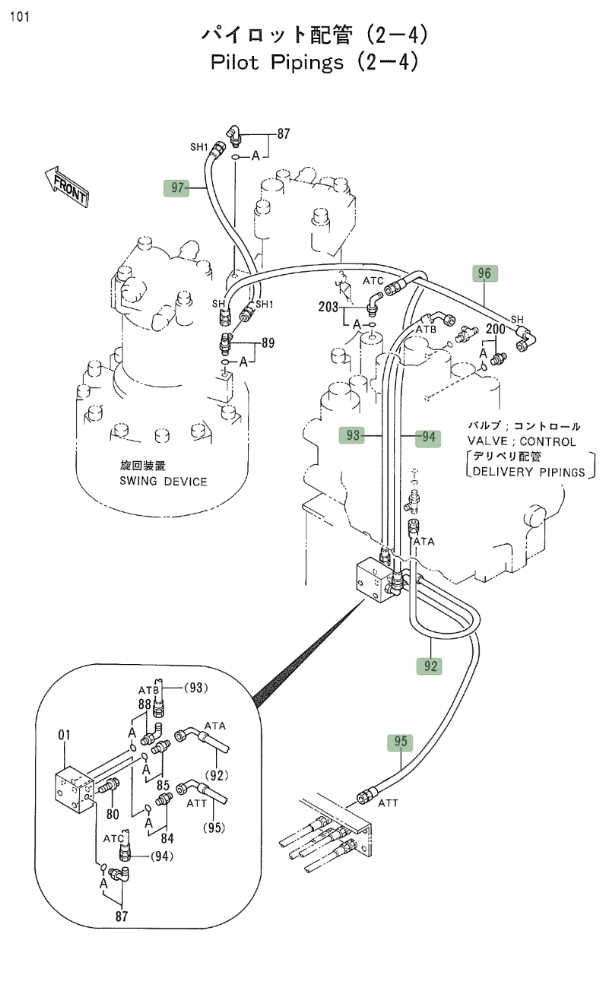

Installation diagram — Pipe No. 94
Locate Pipe No. 94 in the diagram, then confirm part number 4364398 before removing the hose.
Repair specifications
- Part number
- 4364398
- Diagram pipe number
- 94
- Installation route
- 分配阀上~过渡阀块(分配阀)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 850 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,270 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 520 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 450 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 1,150 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 470 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 1,500 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 500 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
