Individual hose record
730503001986 Hose Repair Specifications
Excavator · Sunward · SWE25UF · Control Valve
Finished length1,200 mm
Locate this hose

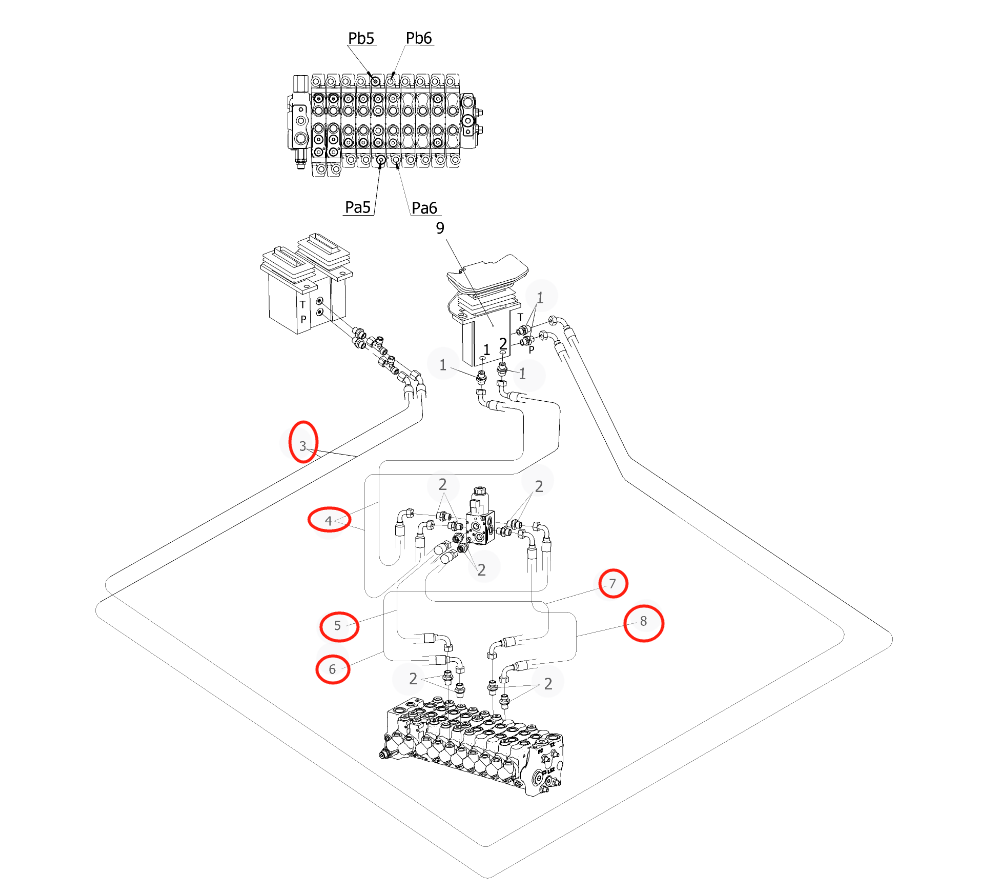

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 730503001986 before removing the hose.
Repair specifications
- Part number
- 730503001986
- Diagram pipe number
- 6
- Installation route
- 分配阀PA6~电磁阀
- Hose specification
- DN5;1SN-03;25MPa
- Finished length
- 1,200 mm
- Working pressure
- 25 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
