Individual hose record

730502000245 Hose Repair Specifications

Excavator · Sunward · SWE25UF · Control Valve

Finished length540 mm

Locate this hose

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 730502000245 before removing the hose.

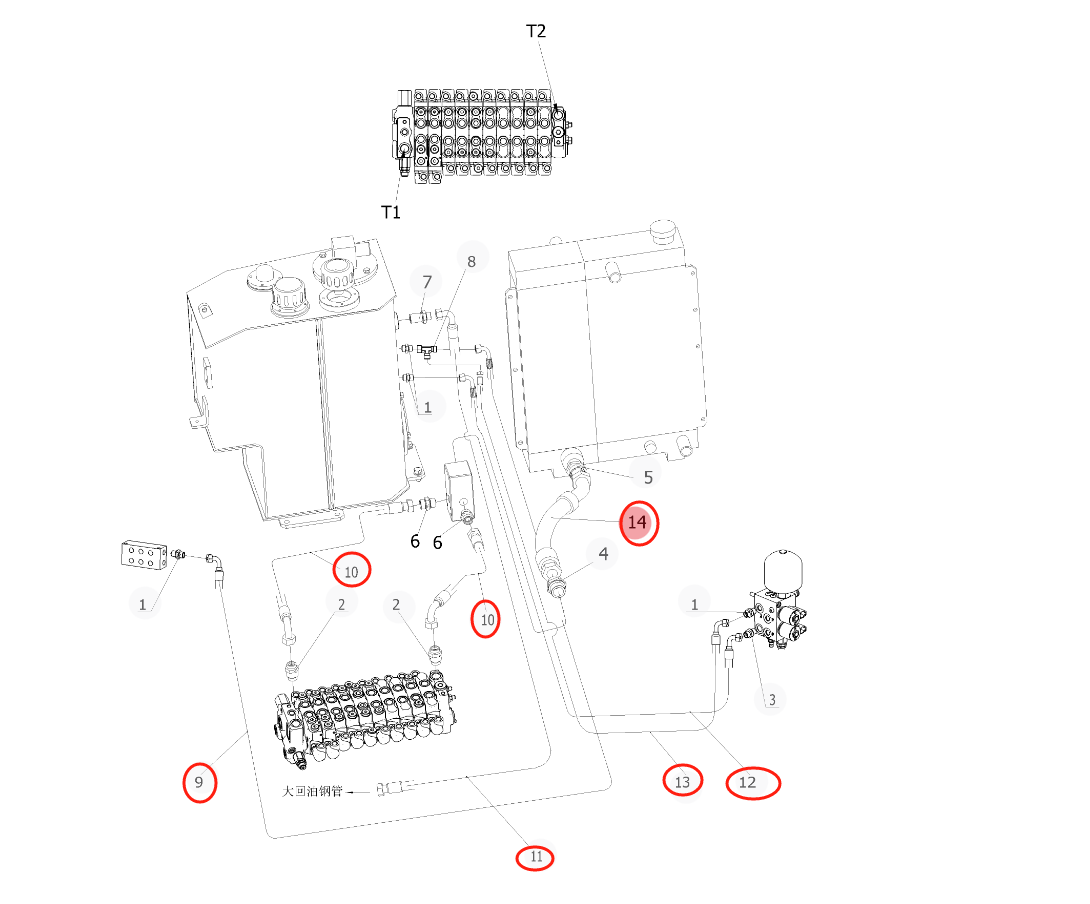

Sunward SWE25UF installation diagram showing hydraulic hose 730502000245 at Pipe No. 10
Sunward SWE25UFPart 730502000245 · Pipe No. 10Open full-size diagram

Repair specifications

Part number
730502000245
Diagram pipe number
10
Installation route
分配阀T2~过渡阀块(散热器旁)
Hose specification
DN12;1SN-08;17.2MPa
Finished length
540 mm
Working pressure
17.2 MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 6

730503001986

Installation route: 分配阀PA6~电磁阀

Length
1,200 mm
Specification
DN5;1SN-03;25MPa
Left fitting
90°公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 13

730502009588

Installation route: 分配阀B9~回转马达

Length
420 mm
Specification
DN10;2SN-06;27.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 12

730502001099

Installation route: 分配阀A9~回转马达

Length
460 mm
Specification
DN10;2SN-06;27.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 5

73050200E173

Installation route: 分配阀PB4~电磁阀

Length
1,220 mm
Specification
DN5;1SN-03;25MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 3

73050200A487

Installation route: 分配阀PA4~电磁阀

Length
1,450 mm
Specification
DN5;1SN-03;25MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 10

730502000245

Installation route: 分配阀T1~过渡阀块(散热器旁)

Length
540 mm
Specification
DN12;1SN-08;17.2MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications
