Individual hose record
73050200A487 Hose Repair Specifications
Excavator · Sunward · SWE25UF · Control Valve
Finished length1,450 mm
Locate this hose

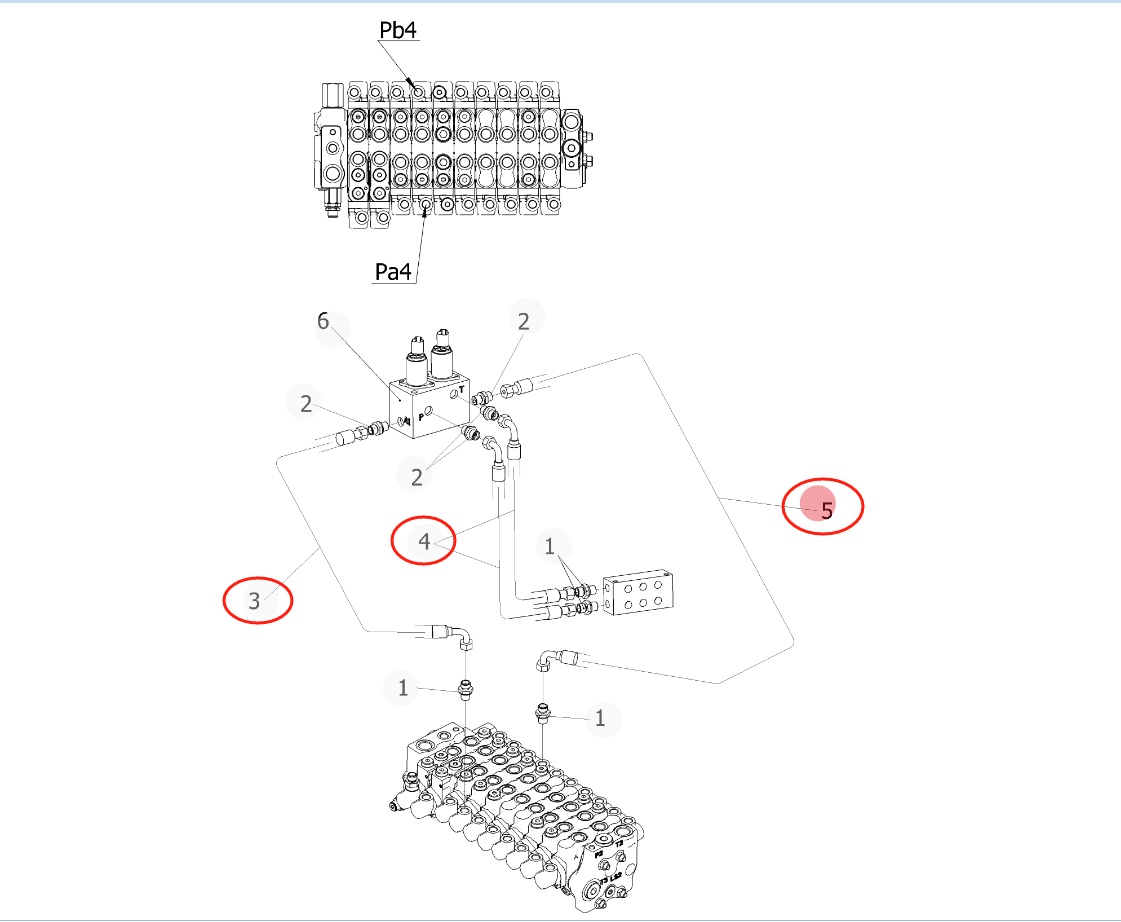

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 73050200A487 before removing the hose.
Repair specifications
- Part number
- 73050200A487
- Diagram pipe number
- 3
- Installation route
- 分配阀PA4~电磁阀
- Hose specification
- DN5;1SN-03;25MPa
- Finished length
- 1,450 mm
- Working pressure
- 25 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
