Individual hose record

KHJ11480 Hose Repair Specifications

Excavator · Case · CX290B · Attachments – Breaker

Finished length3,950 mm

Locate this hose

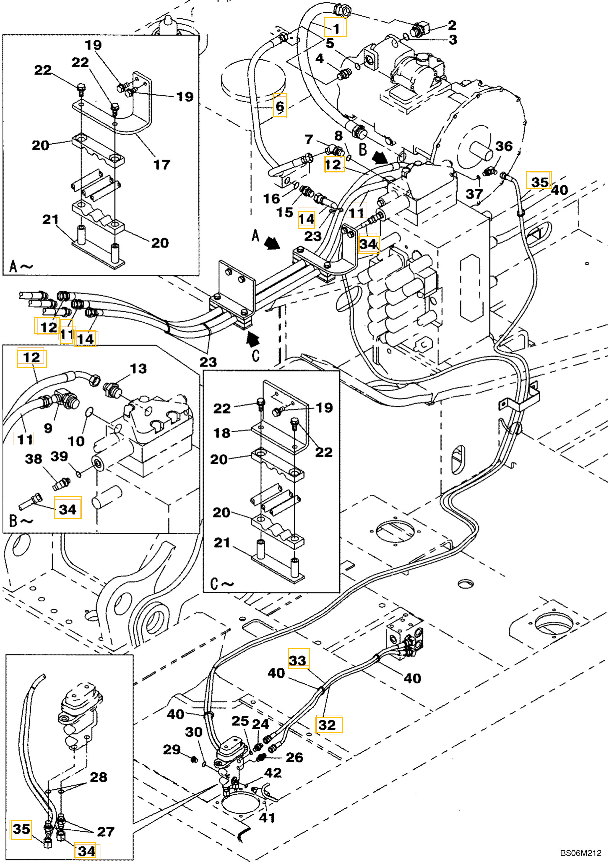

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number KHJ11480 before removing the hose.

Case CX290B installation diagram showing hydraulic hose KHJ11480 at Pipe No. 34 — **Case CX290B**Part KHJ11480 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: KHJ11480
Diagram pipe number: 34
Installation route: 破碎器踏板~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. E84-F84

KHJ2086

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. F71

KHJ2194

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. F68

KHJ2244

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 84

KHJ2180

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 32

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 17

KBV15980

Installation route: 小臂破碎器截止阀右

Length: 1,900 mm
Specification: DN32;6SH-20;42MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型

View full repair specifications

Diagram Pipe No. 8

KBV17880

Installation route: 小臂破碎器截止阀左

Length: 2,400 mm
Specification: DN32;6SH-20;42MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型

View full repair specifications

Diagram Pipe No. 82

KHJ2036

Installation route: 破碎器踏板~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
