Individual hose record
4435075 Hose Repair Specifications
Excavator · Hitachi · ZX650LC-3 · Grease Lines
Finished length1,550 mm
Locate this hose

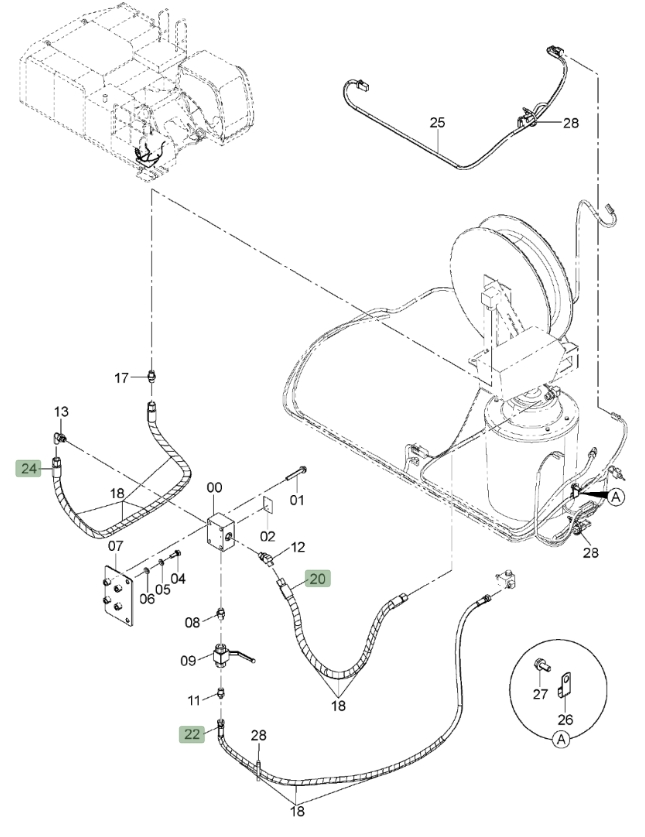

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4435075 before removing the hose.
Repair specifications
- Part number
- 4435075
- Diagram pipe number
- 22
- Installation route
- 过渡阀块(黄油)~接头(黄油)
- Hose specification
- DN6;1SN-4;20.5MPa
- Finished length
- 1,550 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
