Individual hose record
4601514 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Attachments – Breaker
Finished length1,900 mm
Locate this hose

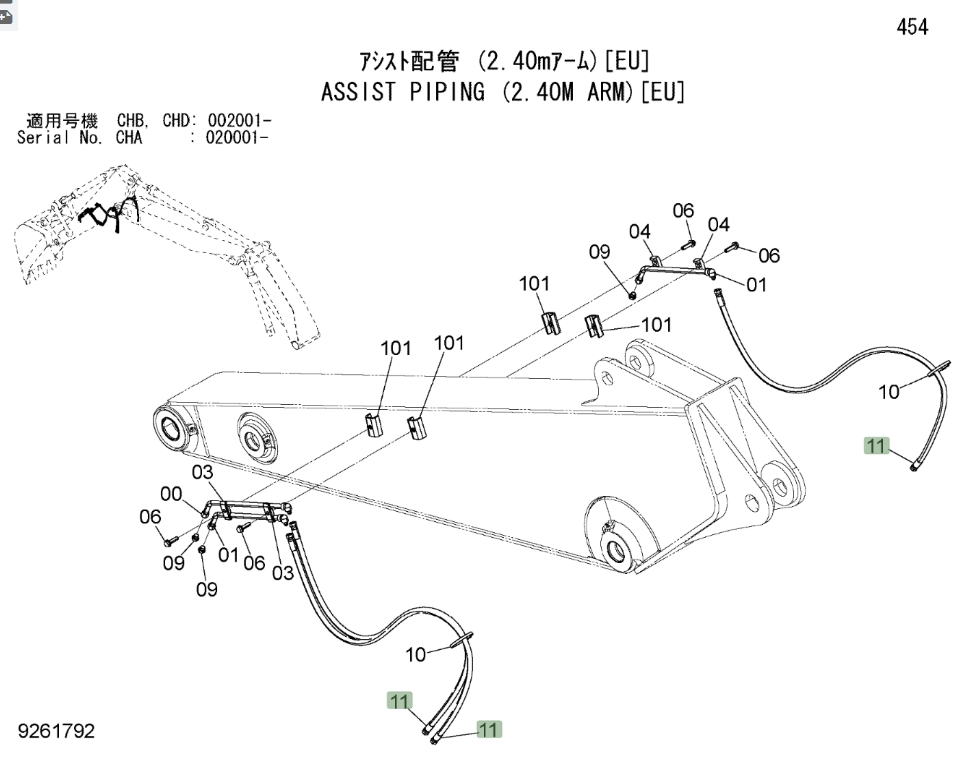

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4601514 before removing the hose.
Repair specifications
- Part number
- 4601514
- Diagram pipe number
- 11
- Installation route
- 大臂(破碎器)~小臂(破碎器)
- Hose specification
- DN10;2SN-06;34.5MPa
- Finished length
- 1,900 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 3
