Individual hose record
4379282 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Control Valve
Finished length750 mm
Locate this hose

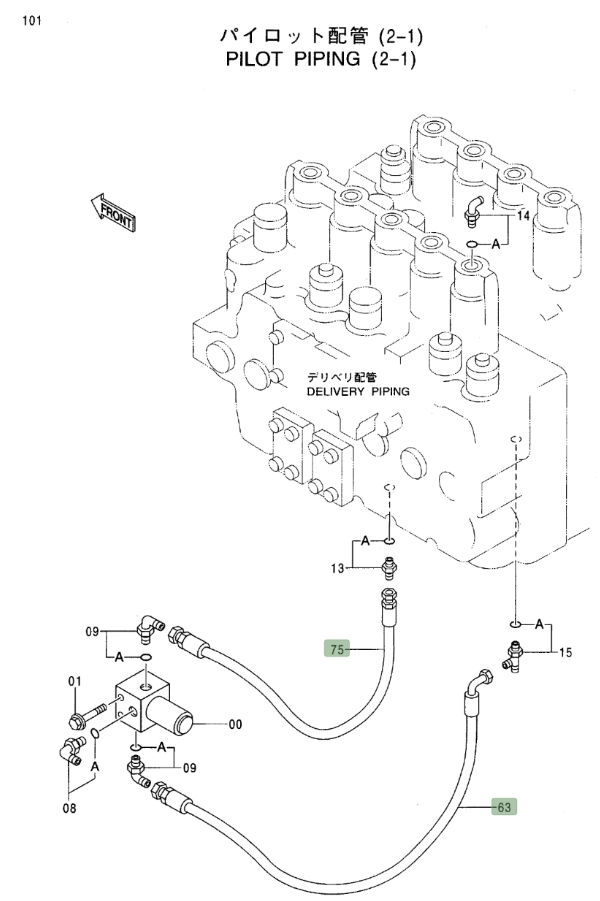

Installation diagram — Pipe No. 75
Locate Pipe No. 75 in the diagram, then confirm part number 4379282 before removing the hose.
Repair specifications
- Part number
- 4379282
- Diagram pipe number
- 75
- Installation route
- 分配阀下左~电磁阀(分配阀)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 750 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
