Individual hose record

730502001142 Hose Repair Specifications

Excavator · Sunward · SWE365F · Control Valve

Finished length300 mm

Locate this hose

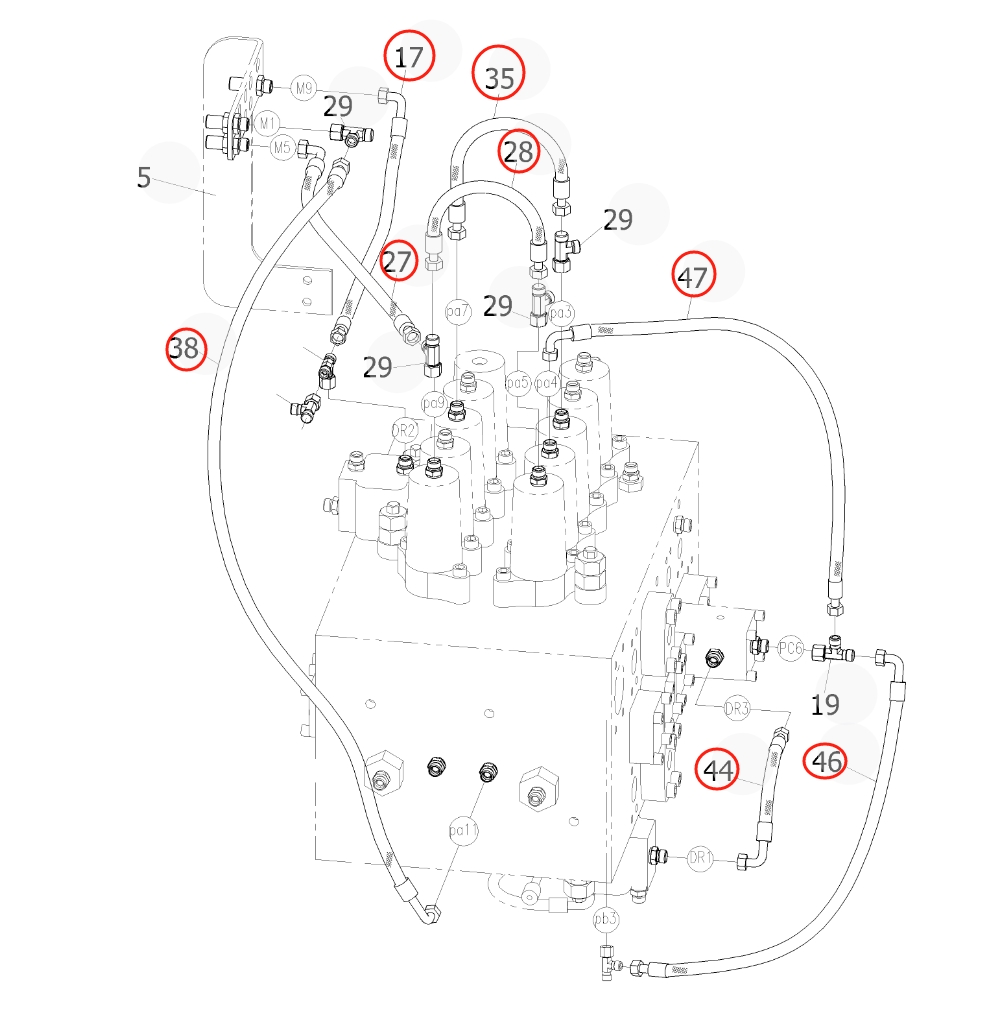

Installation diagram — Pipe No. 44

Locate Pipe No. 44 in the diagram, then confirm part number 730502001142 before removing the hose.

Sunward SWE365F installation diagram showing hydraulic hose 730502001142 at Pipe No. 44 — **Sunward SWE365F**Part 730502001142 · Pipe No. 44Open full-size diagram

Repair specifications

Part number: 730502001142
Diagram pipe number: 44
Installation route: 分配阀左DR3~分配阀下DR1
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 300 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 33

730502003214

Installation route: 分配阀下PC1~接线板M5(分配阀前)

Length: 1,100 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 9

730502000424

Installation route: 分配阀PP~比例阀P

Length: 240 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

730502008265

Installation route: 分配阀右~散热器

Length: 980 mm
Specification: DN50;1SN-32;4MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型

View full repair specifications

Diagram Pipe No. 18

730501000456

Installation route: 分配阀PP~回转马达PG

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 15

730503001158

Installation route: 分配阀左~回转马达

Length: 720 mm
Specification: DN25;6SH-16;35MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 44

730502001142

Installation route: 分配阀下DR1~接线板M9(分配阀前)

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 38

730502001094

Installation route: 分配阀前PA11~接线板M1(分配阀前)

Length: 750 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 14

730504002018

Installation route: 分配阀左~回转马达

Length: 1,000 mm
Specification: DN25;6SH-16;35MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications
