Individual hose record
4367712 Hose Repair Specifications
Excavator · Hitachi · EX700 · Grease Lines
Finished length500 mm
Locate this hose

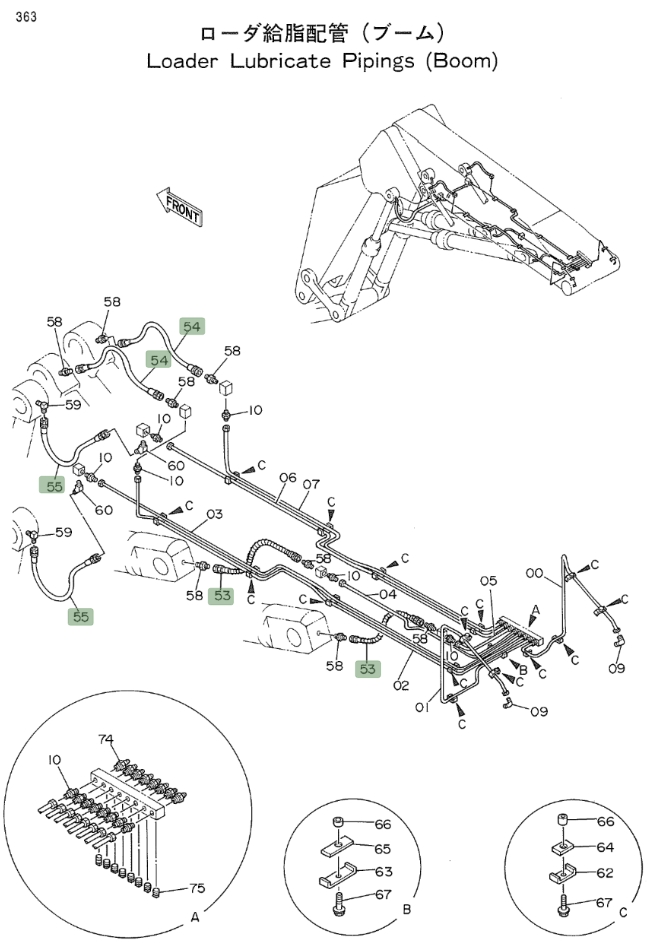

Installation diagram — Pipe No. 54
Locate Pipe No. 54 in the diagram, then confirm part number 4367712 before removing the hose.
Repair specifications
- Part number
- 4367712
- Diagram pipe number
- 54
- Installation route
- 大臂油缸黄油管
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 500 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 2
