Individual hose record

KHJ2310 Hose Repair Specifications

Excavator · Case · CX210D LC 2PB · Attachments – Breaker

Finished length1,350 mm

Locate this hose

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number KHJ2310 before removing the hose.

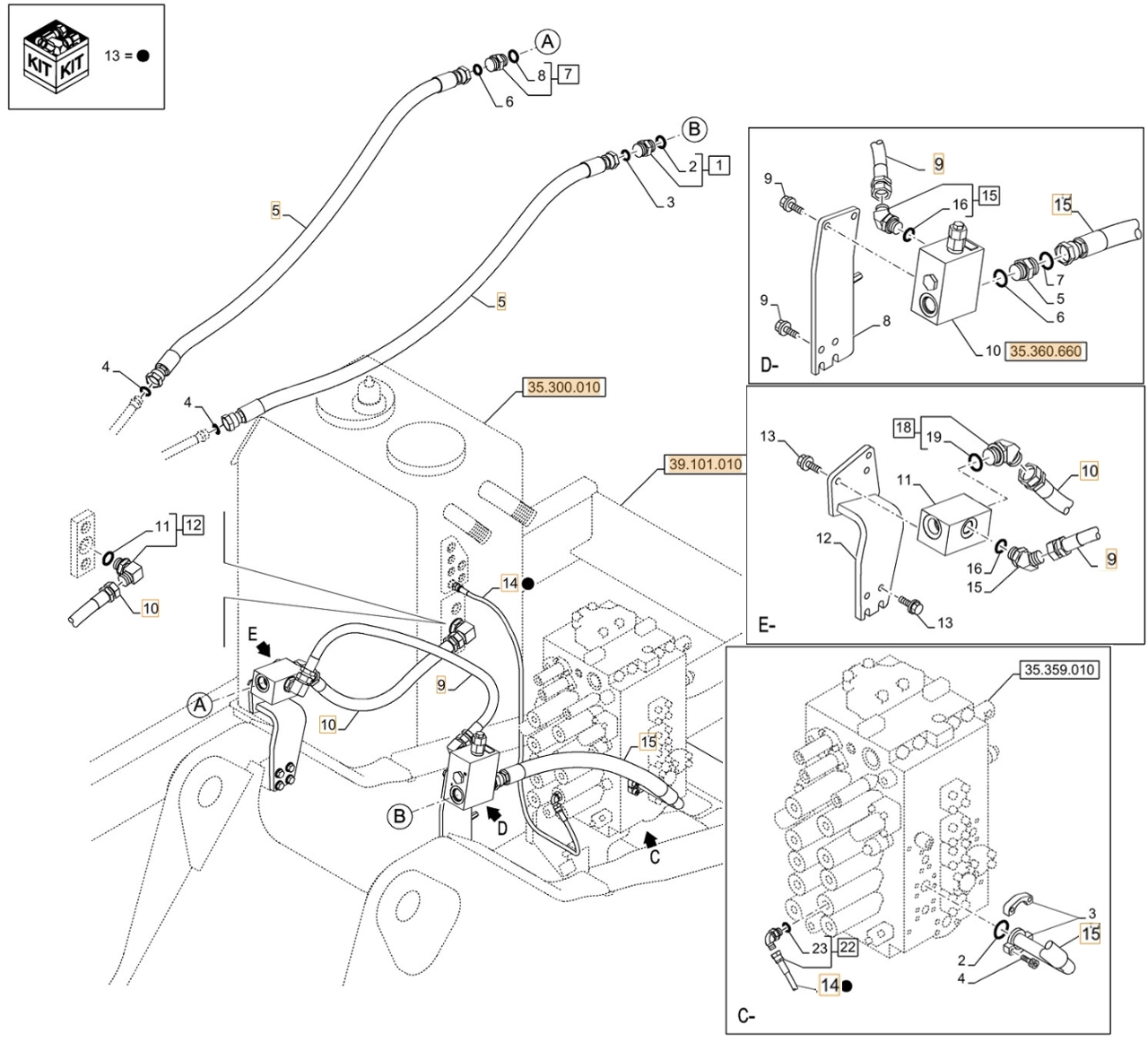

Case CX210D LC 2PB installation diagram showing hydraulic hose KHJ2310 at Pipe No. 9 — **Case CX210D LC 2PB**Part KHJ2310 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: KHJ2310
Diagram pipe number: 9
Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

KHJ2092

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 18

KHJ13660

Installation route: 破碎器踏板~分配阀后

Length: 3,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B29

KHJ2195

Installation route: 电磁阀(破碎器)~进回油阀

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B27

KHJ2089

Installation route: 电磁阀(破碎器)~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. A22-B13-E45

KHJ2581

Installation route: 破碎器踏板~分配阀前

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 90°英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 16

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 10

KHJ2581

Installation route: 破碎器踏板~分配阀后

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 90°英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. B18-D16

KHJ18960

Installation route: 破碎器踏板~控制阀(破碎器踏板)

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
