Individual hose record
4323278 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Attachments – Breaker
Finished length650 mm
Locate this hose

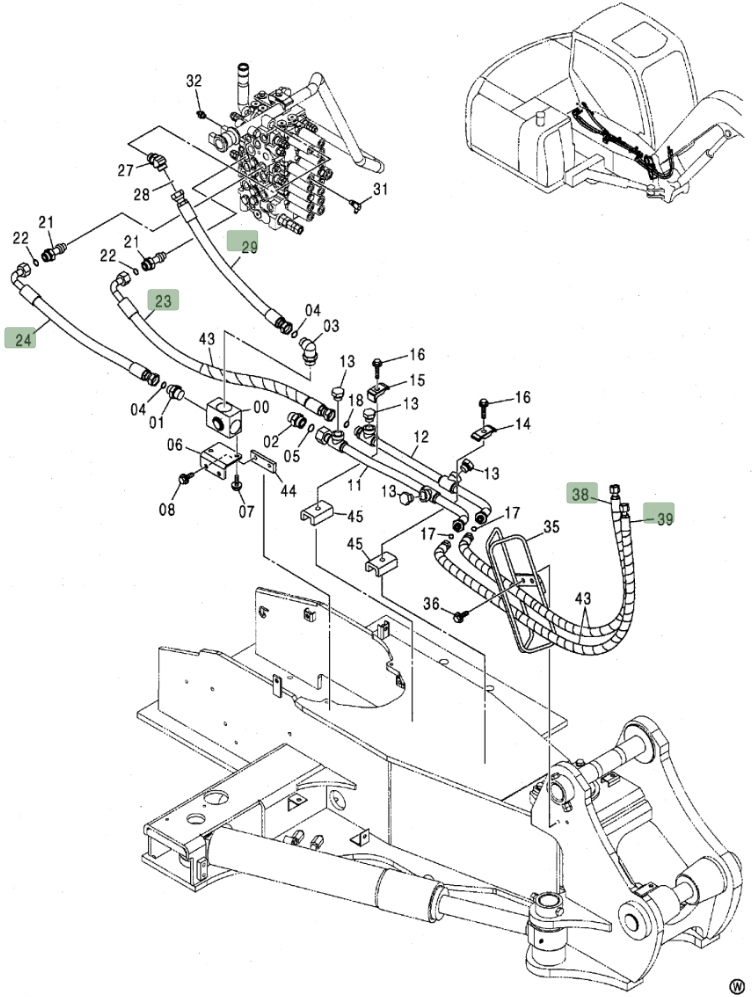

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number 4323278 before removing the hose.
Repair specifications
- Part number
- 4323278
- Diagram pipe number
- 29
- Installation route
- 分配阀右~过渡阀块(破碎器)
- Hose specification
- DN19;1SN-12;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
