Individual hose record
4241360 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Attachments – Breaker
Finished length600 mm
Locate this hose

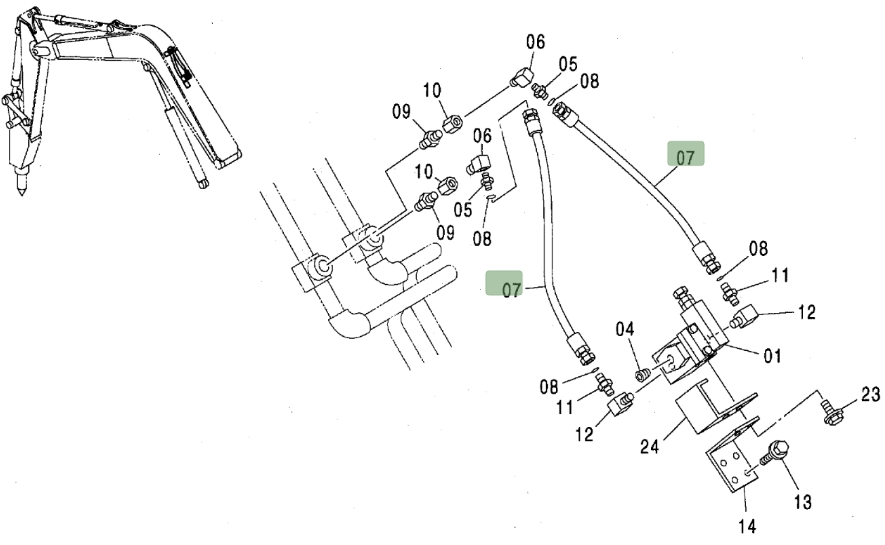

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4241360 before removing the hose.
Repair specifications
- Part number
- 4241360
- Diagram pipe number
- 7
- Installation route
- 大臂(后段)~卸压安全阀(破碎器)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 600 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
