Individual hose record

4269797 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Attachments – Breaker

Finished length750 mm

Locate this hose

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4269797 before removing the hose.

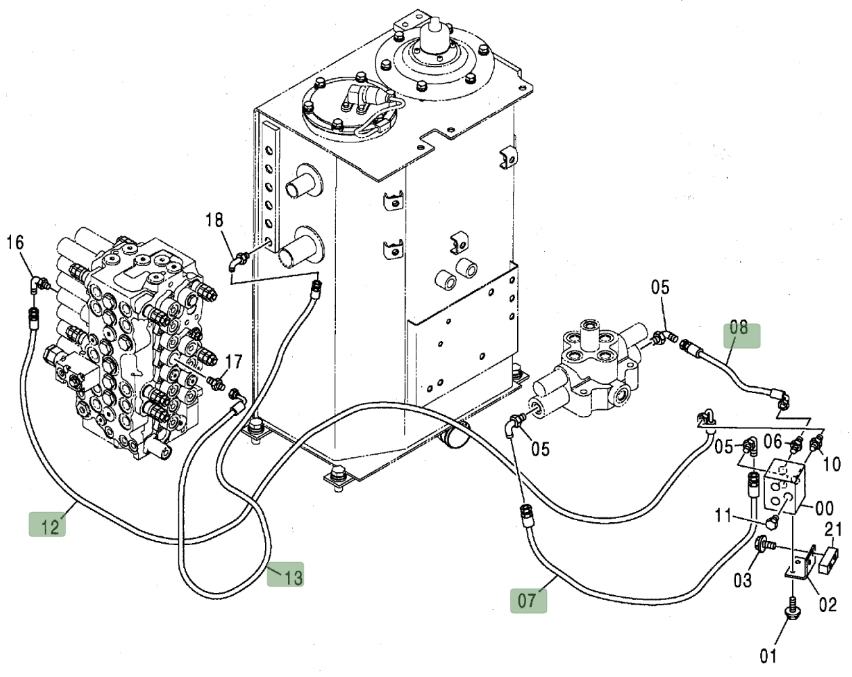

Hitachi ZX80 installation diagram showing hydraulic hose 4269797 at Pipe No. 7 — Hitachi ZX80Part 4269797 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4269797
Diagram pipe number: 7
Installation route: 控制阀(破碎器)~过渡阀块(破碎器踏板)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 750 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 29

4323278

Installation route: 分配阀右~过渡阀块(破碎器)

Length: 650 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4241360

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 600 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4465517

Installation route: 大臂(破碎器)~分配阀右

Length: 2,750 mm
Specification: DN10;2SN-6;25Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 90°英制内螺纹30°外锥

View full repair specifications

Diagram Pipe No. 2

4466630

Installation route: 大臂(破碎器)~小臂(破碎器)

Length: 1,100 mm
Specification: DN10;2SN-6;28Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥

View full repair specifications

Diagram Pipe No. 2

4466630

Installation route: 大臂(破碎器)~小臂(破碎器)

Length: 1,100 mm
Specification: DN10;2SN-6;28Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥

View full repair specifications

Diagram Pipe No. 49

4466630

Installation route: 小臂破碎器截止阀

Length: 1,100 mm
Specification: DN10;2SN-6;28Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥

View full repair specifications
