Individual hose record

4466630 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Attachments – Breaker

Finished length1,100 mm

Locate this hose

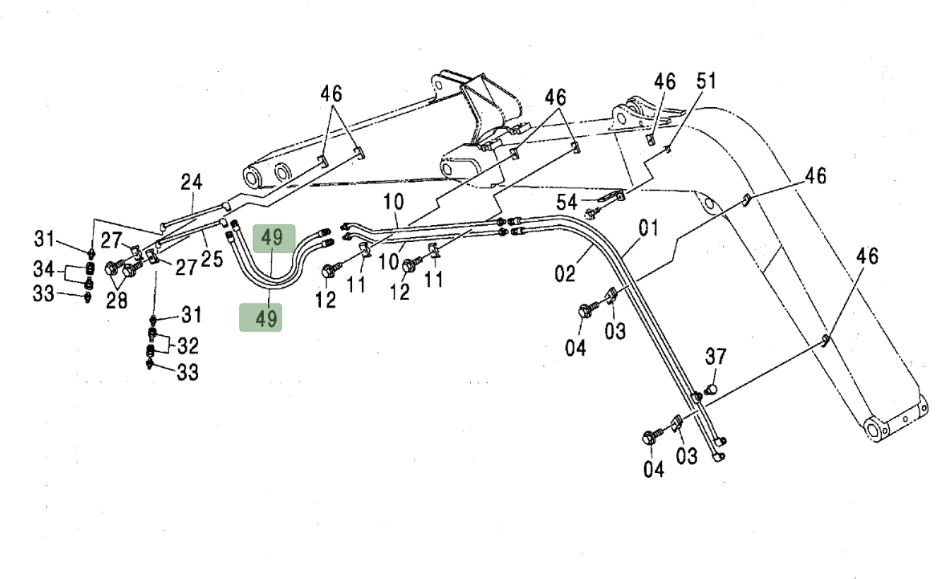

Installation diagram — Pipe No. 49

Locate Pipe No. 49 in the diagram, then confirm part number 4466630 before removing the hose.

Hitachi ZX80 installation diagram showing hydraulic hose 4466630 at Pipe No. 49 — Hitachi ZX80Part 4466630 · Pipe No. 49Open full-size diagram

Repair specifications

Part number: 4466630
Diagram pipe number: 49
Installation route: 小臂破碎器截止阀
Hose specification: DN10;2SN-6;28Mpa
Finished length: 1,100 mm
Working pressure: 28 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 29

4323278

Installation route: 分配阀右~过渡阀块(破碎器)

Length: 650 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
