Individual hose record

4466630 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Attachments – Breaker

Finished length1,100 mm

Locate this hose

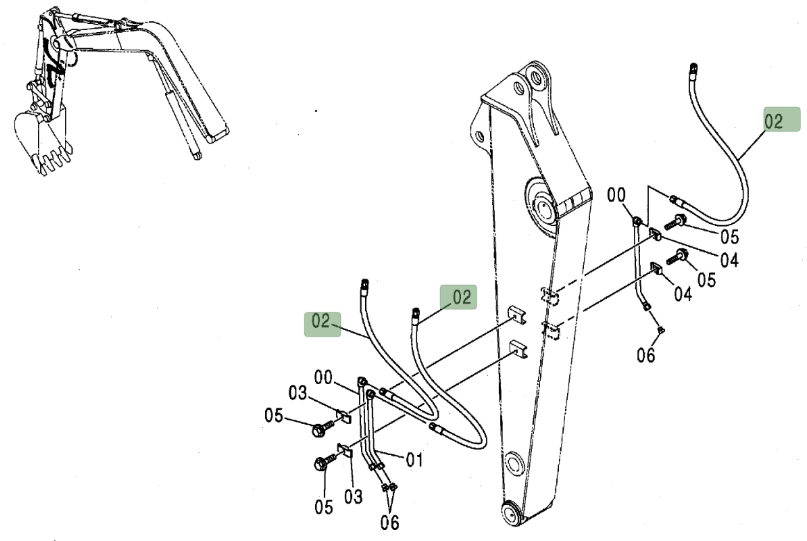

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4466630 before removing the hose.

Hitachi ZX80 installation diagram showing hydraulic hose 4466630 at Pipe No. 2 — Hitachi ZX80Part 4466630 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4466630
Diagram pipe number: 2
Installation route: 大臂(破碎器)~小臂(破碎器)
Hose specification: DN10;2SN-6;28Mpa
Finished length: 1,100 mm
Working pressure: 28 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 3

Same system

Related Hoses

Diagram Pipe No. 29

4323278

Installation route: 分配阀右~过渡阀块(破碎器)

Length: 650 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4241360

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 600 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4465517

Installation route: 大臂(破碎器)~分配阀右

Length: 2,750 mm
Specification: DN10;2SN-6;25Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 90°英制内螺纹30°外锥

View full repair specifications

Diagram Pipe No. 2

4466630

Installation route: 大臂(破碎器)~小臂(破碎器)

Length: 1,100 mm
Specification: DN10;2SN-6;28Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥

View full repair specifications

Diagram Pipe No. 7

4269797

Installation route: 控制阀(破碎器)~过渡阀块(破碎器踏板)

Length: 750 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 49

4466630

Installation route: 小臂破碎器截止阀

Length: 1,100 mm
Specification: DN10;2SN-6;28Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥

View full repair specifications
